Double Roll Crusher – Frequently Asked Questions
Welcome to Huashengming Heavy Industry FAQ Center. Below are the 17 most common questions from our customers, covering product selection, technical parameters, maintenance, ordering & delivery, quality certification, and after-sales service. If your question is not listed, please feel free to contact us.
1. Product Selection & Application
Q1: What materials can Huashengming double roll crushers process?
A: Our double roll crushers can process over 200 types of brittle materials, including river pebbles, granite, basalt, limestone, dolomite, iron ore, gold ore, coal gangue, shale, gypsum, and construction waste. The maximum compressive strength is up to 300 MPa.
Q2: How do I choose the right model for my production line?
A: Please provide your material type, required capacity (t/h), feed size, and target output size. Our engineers will recommend the most suitable model – from small spring roll crushers (2-20 t/h) to large hydraulic series (up to 400 t/h).
Q3: Can the same machine process both dry and wet materials?
A: Yes. Our double roll crushers work well with both dry and wet materials. The screen‑less design and self‑cleaning tooth geometry prevent clogging even at 30% moisture content.
Comparison of materials crushed by double roll crusher
2. Technical Parameters & Performance
Q4: What is the adjustable output size range?
A: The roll gap can be adjusted from 1 mm to 20 mm (up to 50 mm for coarse crushing models). The hydraulic system allows stepless, real‑time adjustment for precise particle sizing.
Q5: How energy‑efficient are your crushers compared to hammer or impact crushers?
A: Our low‑speed compression/shear mechanism consumes 15-25% less energy per tonne than high‑speed impact crushers. For HPGR models, energy savings can reach 30-45% compared to ball mills.
Q6: What is the service life of wear parts (roll shells)?
A: It depends on material hardness. For high‑abrasion materials (river pebbles, granite), high‑chromium alloy roll shells last 3,000-5,000 hours; tungsten carbide studded rolls last 8,000-12,000 hours. All roll shells can be field‑rebuilt by hardfacing 2-3 times, significantly extending total service life.
3. Maintenance & Operation
Q7: How often do I need to replace wear parts?
A: Unlike hammer crushers, our double roll crushers have no hammers, blow bars, or impact plates. The main wear parts are roll shells, which require replacement only after thousands of operating hours. Maintenance intervals are long, typically every 3-12 months depending on material.
Q8: Is on‑site training and installation support available?
A: Yes. We provide detailed manuals, online technical support, and optional on‑site installation & training by our engineers. Remote commissioning service is also available.
Q9: How to prevent clogging when processing sticky or high‑moisture materials?
A: Our crushers feature a screen‑less design and self‑cleaning tooth profiles. Wet fines fall away naturally without adhering to roll surfaces. No manual cleaning is needed during normal operation.

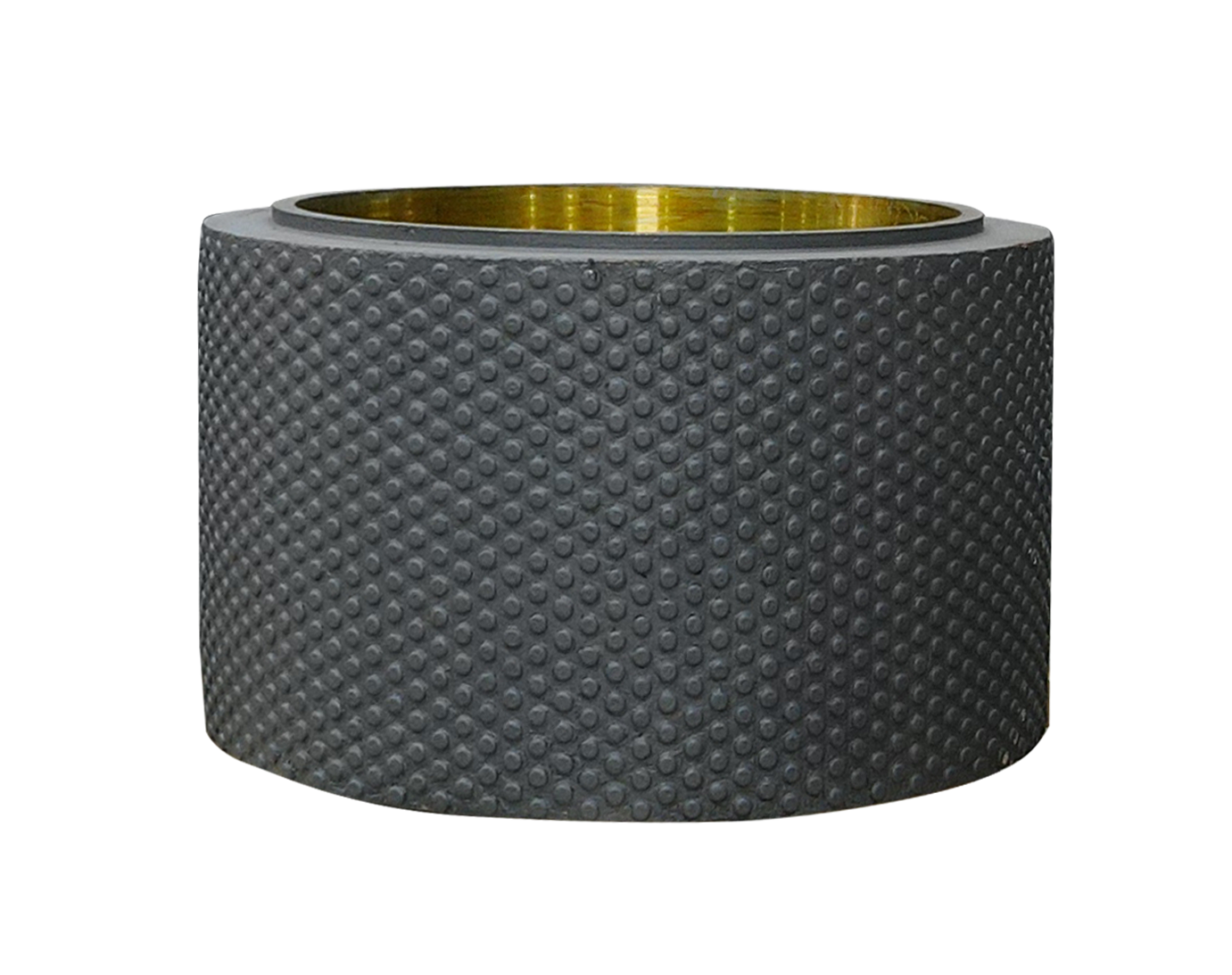

Huashengming patented roll shell – tungsten carbide studded roll
4. Ordering, Pricing & Delivery
Q10: What is your Minimum Order Quantity (MOQ)?
A: MOQ is 1 set. We welcome small trial orders.
Q11: What payment terms do you accept?
A: We accept T/T (wire transfer), L/C at sight. For small orders, Western Union or PayPal are also accepted.
Q12: What is the typical delivery lead time?
A: For standard models in stock, delivery is 7-15 days. For custom‑built machines, lead time is 25-45 days depending on specifications.
Q13: Do you provide spare parts? How to order them?
A: Yes, we stock genuine spare parts (roll shells, bearings, hydraulic components, etc.). Spare parts can be ordered together with the machine or separately at any time.
5. Quality & Certification
Q14: What certifications do your machines have?
A: Our machines are CE certified and meet ISO 9001 quality management standards. The patented wear‑resistant roll shell material is nationally certified.
Q15: Can I test the machine with my own material before purchase?
A: Yes. We offer a free material test service. You can send us your material samples, and we will run a crushing test and provide a detailed report.
6. After‑Sales Support
Q16: What is your warranty period?
A: We provide a 12-month warranty for the main machine (excluding wear parts). Technical support is available for the entire machine life.
Q17: How do I contact your support team?
A: You can reach us via email at support@hsmmachinery.com, WhatsApp/WeChat at +86 15093265666, or through the contact form on our website.
Huashengming Patent Credentials
Still Have Questions?
If your question is not answered above, please contact our technical team for a customized solution based on your specific material and capacity requirements.
